CodeScan for VSCode

The CodeScan VS Code plugin provides on-the-fly feedback to developers on bugs and quality issues, it is a fully-integrated user experience in VS Code.

Prerequisites

You will need:

  • Java 8
  • A working SonarQube (6.7.4+) installation
  • A recent version of VS Code installed (v1.12 or above)
  • A licensed version of CodeScan (4.0.7+) plugin to get started (see here)
  • If you are working with Salesforce code, you will need the Salesforce Extensions for VS Code or at least the Apex and Visualforce plugins.

Installation

  • In VS Code, go to the Marketplace and download CodeScan.

  • Restart VS Code.

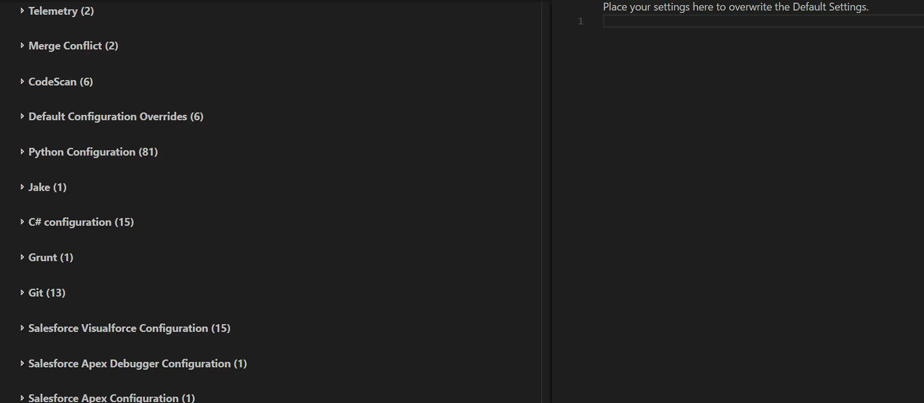

  • In the VS Code User Settings, in the CodeScan section, copy over the codescan.servers setting to the right hand pane and edit the following.

  • For CodeScan Cloud

    • Replace the value of organization with your CodeScan Cloud organization key.
    • Replace the value of token with a token generated in here in CodeScan Cloud.
    • Replace the value of url with https://app.codescan.io/
    • Replace the value of id with a value you will remember.

  • For Self-Hosted CodeScan

    • Add the parameter login and password and assign it your SonarQube username and password. (Alternatively use the token parameter and generate a token in SonarQube)
    • Replace the value of url with your SonarQube server URL.
    • Replace the value of id with a value you will remember.

  • Now hit Ctrl+Shift+P (Windows/Linux) or Shift+Command+P(Mac) to open the Command Palette.

  • Type in CodeScan to bring up the CodeScan commands and click “CodeScan: Create a ‘sonarlint.json’ file”.

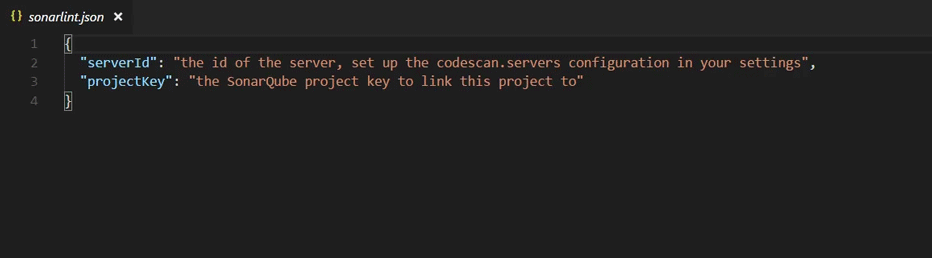

  • Open the sonarlint.json file in the root of your project.

    • Change the value of “serverId” to the id you set in the VS Code User Settings.
    • Change the value of “projectKey” to the name of the associated project in SonarQube.

  • Open the Command Palette again and run “CodeScan: Update all project bindings”. If any changes are made on the SonarQube server you should repeat this step.

Troubleshooting

Some useful debugging information is available under the Output window under the ‘CodeScan’ tab.

CodeScan should automatically find the JRE installed on your computer. If you are having trouble you can specify the path using sonarlint.ls.javaHome variable in your VS Code Settings.

You can check for any serious errors by going to Help > Toggle Developer Tools to bring up the console.

You can also contact us at the CodeScan Support Page. Feel free to ask questions, report issues, and give suggestions.
